More displays
Multi-display
One Pi can drive every display in the house. The Pi that runs Home Screens is the hub; every other display is a cheaper Pi that only runs a browser pointed at the hub. Each display gets its own screens, size and orientation, so a portrait kitchen touchscreen and a landscape living-room TV live side by side.
Nothing changes until you add a second display. A single-display install looks and works exactly as before.
What you need
- Your existing Home Screens Pi, which becomes the hub
- One more Raspberry Pi per extra display. It only runs a browser, so a Pi Zero 2 or a Pi 3 is enough for a clock and calendar; use a Pi 4 or 5 for full-screen photos and weather
- A screen and an HDMI cable for each, and the hub's address (for example
http://192.168.1.100:3000)
1. Set up the extra Pi
Flash plain Raspberry Pi OS Lite 64-bit onto its card (in Raspberry Pi Imager, Lite is under Raspberry Pi OS (other)), boot it, and run the installer with the display-only flags:
sudo apt install git
git clone https://github.com/home-screens/home-screens.git
~/home-screens/scripts/install.sh --display-only --backend http://192.168.1.100:3000
Replace the address with your hub's. The installer asks how the screen is mounted, sets up the browser, and reboots into it. It skips everything a hub needs, so it is quick. --display-id kitchen gives the display a name of your choosing; otherwise one is generated. The full flag list is under Raspberry Pi internals.
On boot the new Pi looks for the hub. If the hub is off, it shows a waiting screen and keeps trying; the moment the hub answers, the display comes up on its own.
2. Add it in the editor

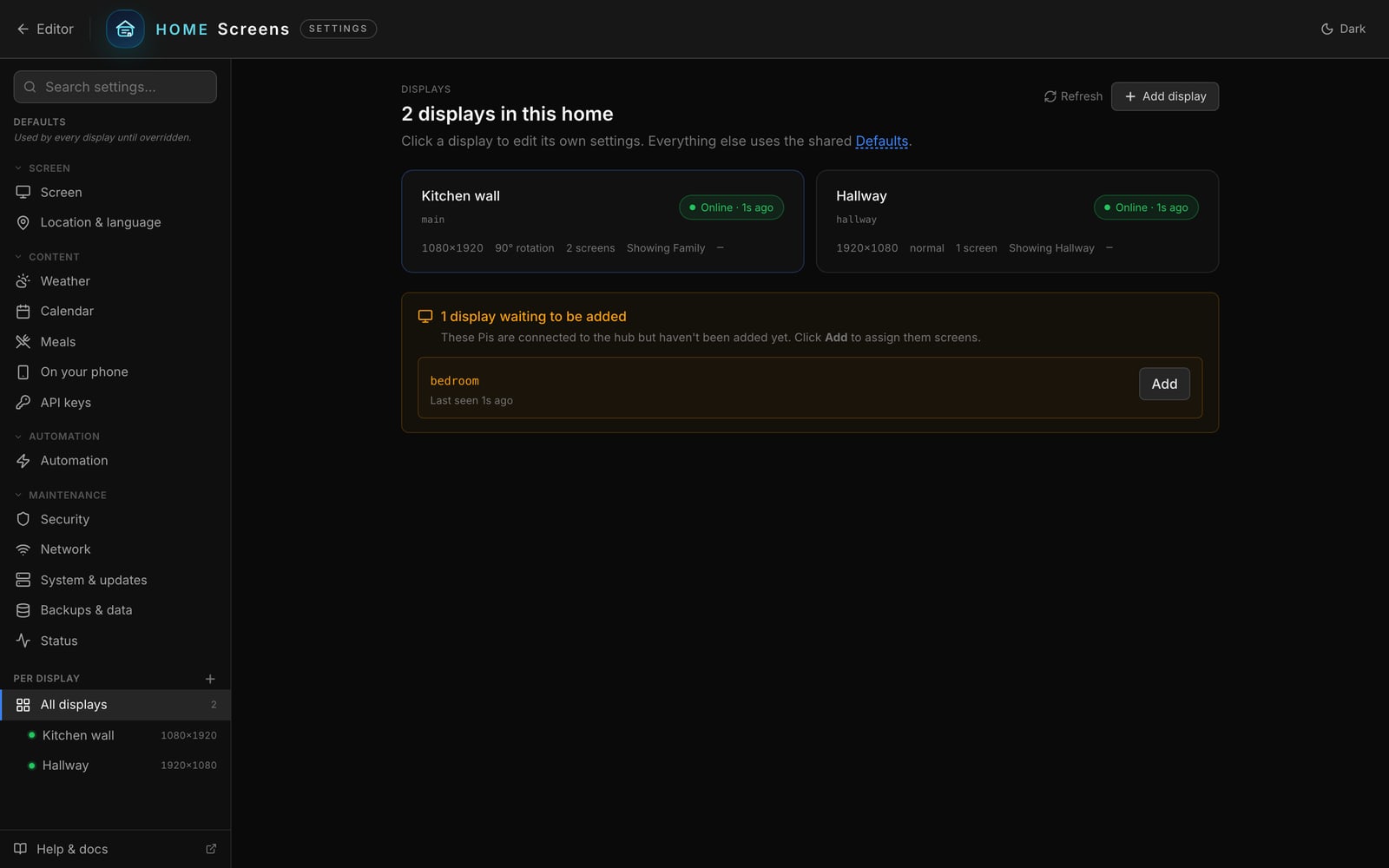

The new display shows up on the hub within a few seconds. In the editor, open Settings > Displays.
- Under waiting to be added, click Add next to the new display.
- Give it a name, such as "Kitchen" or "Bedroom TV".
- Check the size and orientation, which are filled in from what the display reported, and save.
The display switches to its own screens a few seconds later. The first time you add a display, the editor also creates a display called main for the hub's own screen, holding everything you had designed so far, so you will see two displays right away. The display's ID (the short lowercase name) is fixed once added; its friendly name can change any time.
A new display starts with no screens. Click it, then Edit screens, and design for it the same way as your first one; the templates all come in portrait and landscape.
3. Design for each display

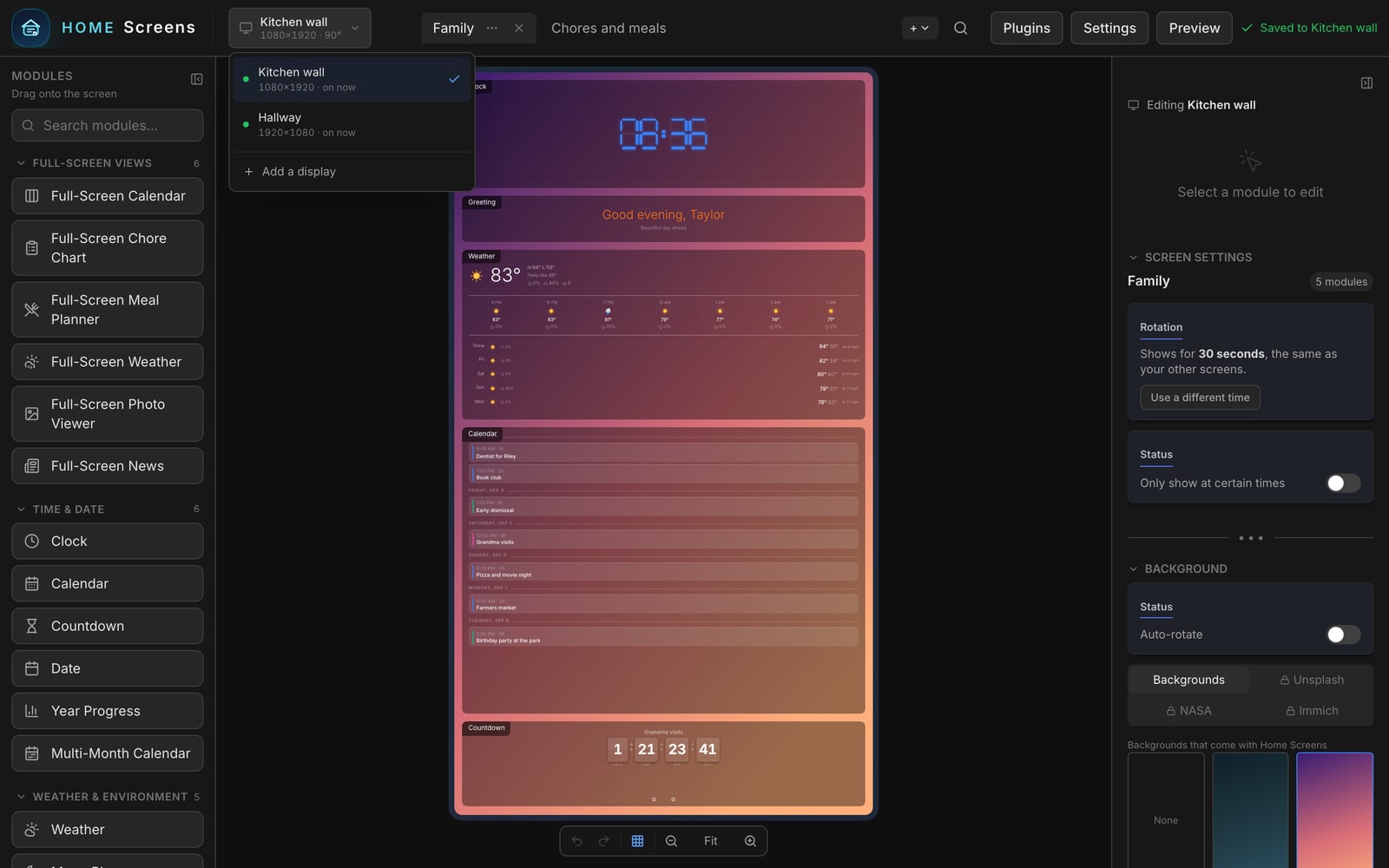

Every display has its own list of screens, designed at its own shape. In the editor toolbar, a Display Switcher pill shows which display you are editing; click it to switch. The canvas, the screen tabs and the panel on the right all follow.
Shared settings and per-display settings
With more than one display, the Settings sidebar splits in two:
- Defaults are the pages you already know: Screen, Location & language, Weather, Calendar and the rest. Every display uses these values until you override one.

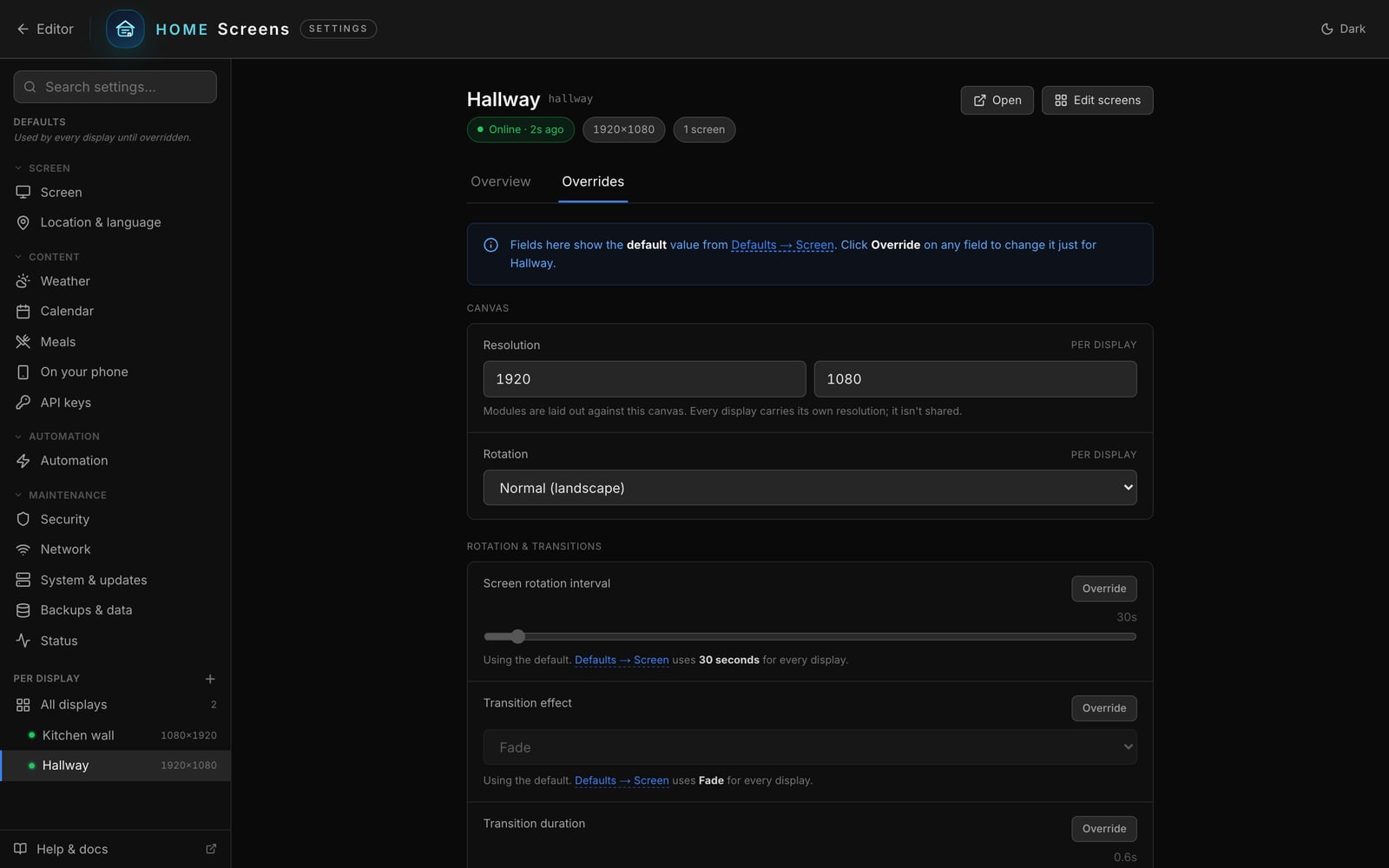

- Per display lists each display. Its Overview tab shows its status and profile; its Overrides tab lists every setting it can have its own value for, with an Override button on each row and Reset to default once overridden. The row always says where the value is coming from.
Size and orientation are always per display, since every display has its own physical screen. Sleep and alerts are overridden as a whole group each, not one field at a time, so a display that wants its own bedtime sets all of its sleep settings on its own page. A Defaults page shows a banner naming any displays that override its fields, with a link to each.
Profiles per display
Each display has its own profiles. Switching a profile from the family remote or a home-automation script changes that one display; the others keep theirs.
The family remote
Once there is more than one display, the family remote's Control tab gets a Send to row: pick a display, or All to send brightness, sleep, wake and alerts to every display at once. Changing screens and switching profiles work on one display at a time. Timers get a Show on row for the same reason.
A Display Control module on a touchscreen can do the same from the wall, aimed at itself, another display by name, or all of them. See Display Control.
If something goes wrong
The new display does not appear under waiting to be added. Check that it is on and can reach the hub's address (the same one you typed into the installer). It appears within about ten seconds of booting and disappears from the list again if it has not been heard from for two minutes, so restart it and look again. On the display itself, the waiting screen names the hub address it is trying.
A display shows "display not found" with a countdown. Its entry was deleted from the hub. Let the countdown finish, or press Go to the main display now, and it shows the hub's main display; or add a display with the same ID again.
Two displays show the same thing. Two Pis were installed with the same display ID. Reinstall one with a different --display-id and add it as its own display.
A display says Offline in Settings > Displays. Heartbeats live only in the hub's memory, so every display shows offline for a few seconds after the hub restarts or updates. If one stays offline, it is off, disconnected from the network, or pointed at the wrong hub address.
The Display Switcher is missing. It only appears once a second display exists.
Under the hood
For scripts and home automation, every display command takes a display parameter, and all broadcasts; see Targeting a display in the API reference. The hub's list of displays and their status is at GET /api/displays. The configuration shape, the limits (64 displays, 256 screens each) and the reserved IDs are under DisplayNode in the configuration reference, and the display-only installer and self-update mechanics are in Raspberry Pi internals.
Next steps
- Voice control: drive every display from Home Assistant
- Profiles and schedules: a different set of screens per display and time of day
- On your phone: the family remote's Send to row
