Install
Most people install Home Screens by flashing a ready-made image onto a memory card. That takes about 10 minutes of your time and around 30 minutes end to end, most of it waiting. If you already have a Pi running Raspberry Pi OS, the install script is quicker.
| Method | When to use it | Time |
|---|---|---|
| Pre-built image (recommended) | A fresh Pi, or one you are happy to wipe | about 30 min, 10 hands-on |
| Install script | A Pi that already runs Raspberry Pi OS | about 15 min |
Need the hardware first? See What to buy. Want to try it on a laptop before buying anything? The development setup runs it on a Mac, Windows, or Linux machine.
Pre-built image
Download a ready-to-boot SD card image, flash it, and power on. The image contains Raspberry Pi OS Lite with Home Screens already installed and set to start on its own.
Images are published for major and minor releases (v1.0.0, v1.1.0, and so on). Patch releases arrive through the built-in updater once you are running.
Requirements
- Raspberry Pi 4 or 5 (2 GB or more)
- A microSD card (16 GB or more)
- Raspberry Pi Imager on your computer
- A screen connected over HDMI
Download and flash
- Download home-screens-v1.12.2.img.xz from GitHub. You do not need to unzip it. Older images are on the releases page.
- Open Raspberry Pi Imager.
- Click Choose Device and pick your Raspberry Pi model.
- Click Choose OS, scroll to the bottom, and pick Use custom. Select the
.img.xzfile you downloaded. - Click Choose Storage and pick your microSD card.
- Click Next. When Imager asks whether to apply OS customisation, click No. The image is already set up.
Do not click Edit Settings in Imager
Imager's customisation screen does not work with this image, and if you open it you will be stuck. No is the right answer. Ethernet works with no setup at all; for WiFi, use the wifi.txt file described next.
WiFi setup
If the Pi will be on WiFi rather than a cable, tell it your network before the first boot:
- After flashing, take the card out and put it back in so the boot drive (labelled
bootfs) shows up on your computer. - Find
wifi.txt.exampleon that drive and rename it towifi.txt. - Open
wifi.txtin a text editor and fill it in:
SSID=Your Network Name
PASSWORD=your-wifi-password
COUNTRY=US
| Line | Required | Meaning |
|---|---|---|
SSID | Yes | Your WiFi network name |
PASSWORD | No | Your WiFi password, exactly as typed, spaces included. Leave the line out for an open network. |
COUNTRY | No | Two-letter country code such as US, GB or DK (defaults to US). Set it: it decides which WiFi channels the Pi may use. |
HIDDEN | No | true if your network is hidden (defaults to false) |
- Save the file, eject the card, and put it in the Pi.
When it boots, the Pi reads wifi.txt, saves the network, and deletes the file so your password is not left sitting on the card. If something in the file could not be used (a missing SSID line, a password shorter than 8 characters), the file stays where it is: fix it and boot again.
First boot
Put the card in the Pi and plug in the power. You will see:
- A black screen for 30 to 90 seconds while the Pi starts up
- The Raspberry Pi rainbow splash, briefly
- The Home Screens splash while the card is prepared and WiFi connects

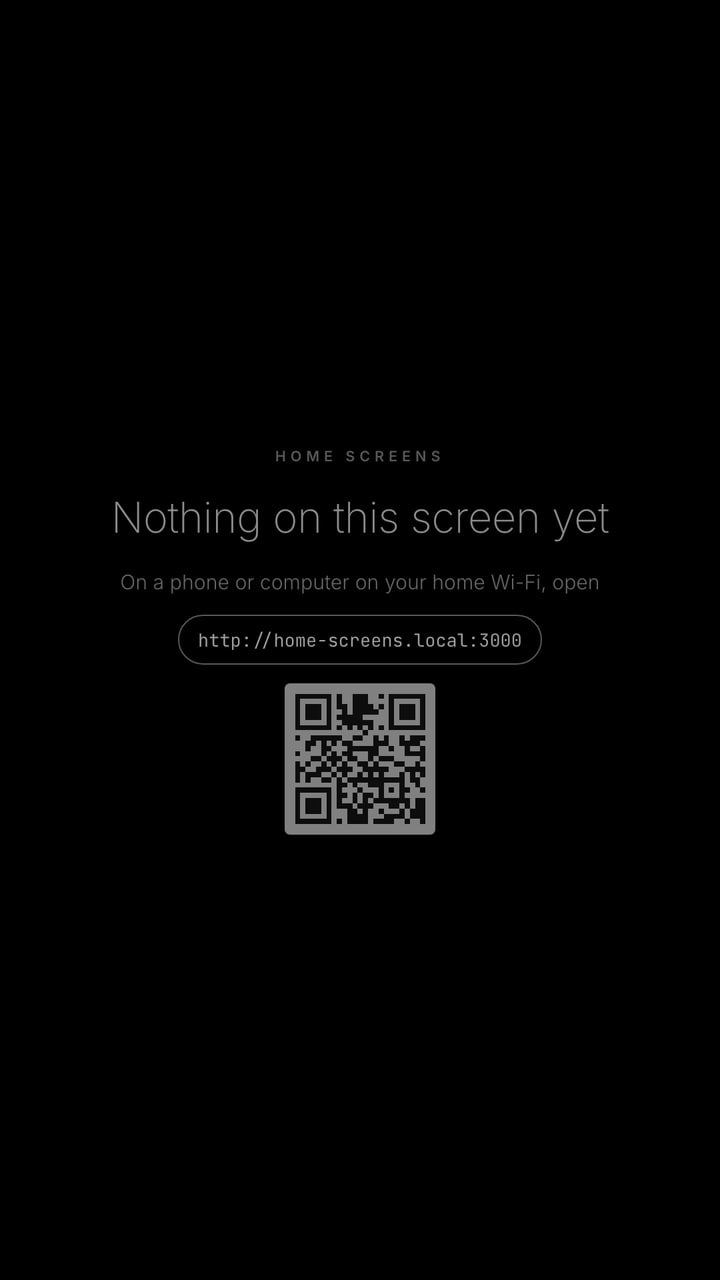

- A dark screen with "Nothing on this screen yet", the address to open, and a QR code
That last screen means the Pi is done. Nothing is wrong; you have not designed a screen yet. Total time is 2 to 3 minutes. If it is still black after 5 minutes, see the screen is still black.
Finding your Pi on the network
The address is on the wall. On the pre-built image it is:
http://home-screens.local:3000
Open it from any phone or laptop on the same WiFi. A laptop lands in the editor. A phone gets a short menu instead: the family remote, the kids' chores page, and the editor address to send to a laptop, because the editor needs a wide screen.
If home-screens.local does not open (a few routers do not support these names), look at the address printed on the wall, or find a device called home-screens in your router's admin page and use its IP address instead, like http://192.168.1.50:3000.
The Pi's own login
The image switches on SSH, the way to reach the Pi from a terminal, with these details:
| Username | hs |
| Password | screens |
| Hostname | home-screens |
You will not need it for everyday use; everything is done in the editor. If you do use it, change the password right away with passwd, or switch SSH off with sudo systemctl disable --now ssh. Until you do, anyone on your network who knows these details can log in to the Pi.
Install script
If you already have a Pi running Raspberry Pi OS, or you need a patch release that has no image, the install script sets everything up: Node.js, the app, Chromium in kiosk mode, and a service that starts on boot.
Requirements
- Raspberry Pi 4 or 5 (2 GB or more). The Pi 5 is much smoother with large screens and animations.
- Raspberry Pi OS Lite 64-bit (Trixie). Desktop works too. In Raspberry Pi Imager, Lite is under Raspberry Pi OS (other).
- A screen connected over HDMI
- A network connection (cable or WiFi)
Install
curl -fsSL https://raw.githubusercontent.com/home-screens/home-screens/main/scripts/install.sh | bash
Or download the script first if you want to read it before running it:
sudo apt install git
git clone https://github.com/home-screens/home-screens.git
~/home-screens/scripts/install.sh
Running Pi OS Desktop rather than Lite? Add the --desktop flag. When you pipe the script through bash, flags go after -s --:
curl -fsSL https://raw.githubusercontent.com/home-screens/home-screens/main/scripts/install.sh | bash -s -- --desktop
The script asks how your screen is mounted (portrait or landscape) and picks up its resolution on its own. Every flag is listed under Installer flags.
When it finishes, reboot. The display starts by itself, and the editor is at http://<pi-ip>:3000/editor from any other device on your network.
Next steps
- Your first screen: pick a template, set your location, add a calendar and a chore chart
- On your phone: the family remote and the kids' chores page
- Troubleshooting if something on this page did not go to plan
